Ever have to re-strip wires because they were too short? I have seen it happen many times. I have been involved in the electrical wire processing machine industry for over 6 years and know how this slows things down. A semi auto wire stripping machine is crucial for this reason.
I will tell you the precise strip lengths that a semi auto wire stripping machine can handle in this article. I will also teach you how to set the correct duration. You will learn about wire kinds, industrial usage, practical case studies and advice for purchase.
What is a semi auto wire stripping machine, and why does strip length matter?

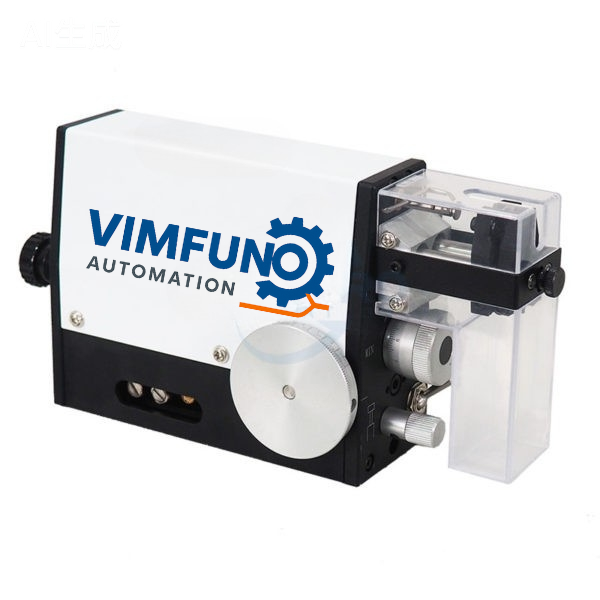

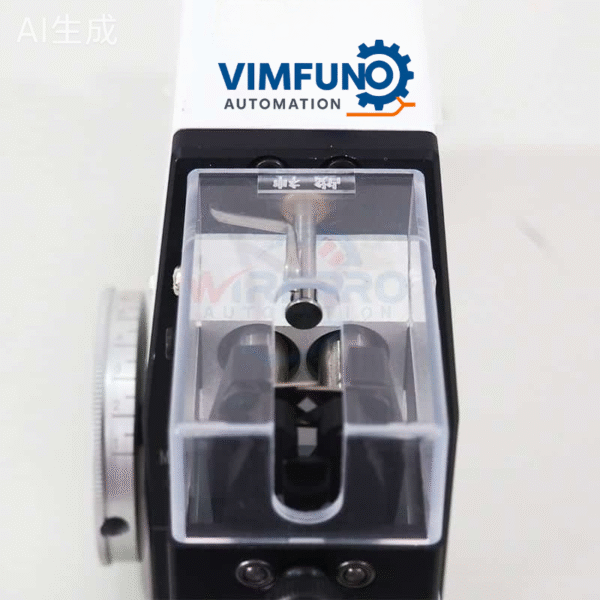

A semi auto wire stripping machine is an electrical wire processing machine. It employs a motorised blade to strip wire insulation. The operator feeds the wire in manually. The cut depth and strip length are automatically determined by the machine. Strip length is one of the most critical settings on any cable stripping machine.
If it’s too short the cable will not join correctly. Too lengthy and you run the danger of short circuits. Most semi-auto wire stripping machines can strip 1 mm to 50 mm. Getting this properly means saving time and cutting waste.
Standard Strip Length Specs for Wire Stripping Machines
| Specification | Metric (mm) | Imperial (inch) | Typical Use Case |
| Minimum Strip Length | 1 mm | 0.04 inch | Micro connectors, sensors |
| Short Strip Range | 2 – 8 mm | 0.08 – 0.31 inch | PCB terminals, small connectors |
| Standard Strip Range | 8 – 20 mm | 0.31 – 0.79 inch | General wiring, automotive harness |
| Long Strip Range | 20 – 35 mm | 0.79 – 1.38 inch | Power cables, bus bars |
| Maximum Strip Length | Up to 50 mm | Up to 2.0 inch | Industrial control panels |
| Adjustment Increment | 0.1 – 1 mm | 0.004 – 0.04 inch | Precision adjustment scale |
| Repeatability Accuracy | ±0.2 mm | ±0.008 inch | High-volume production runs |
How Do You Set the Right Strip Length on a Precision Wire Stripper?
Wrong strip length is a major reason of sluggish output. How do you use a precision wire stripper to get the job done correctly? The majority of semi auto wire stripping machines include a digital counter or mechanical stop. You input the length in mm or inches. The machine locks it down.
A digital display is included in modern automatic wire stripping equipment. It is adjustable in 0.1mm increments. This makes it simple to repeat the same length for huge batches. Most operators will set the length depending on the connection or crimp standard.
What Wire Types Affect the Strip Length Setting?
Different wires require different lengths of strip. Both the insulation thickness and wire size are important.
- Single-core solid wire – requires small strips (3-10 mm) for a snug fit in the termination
- Multi-strand flexible wire – ideal at 8–15 mm to retain all strands during crimping
- Shielded cable Takes longer strips (15–30 mm) to reach the inner conductor
- Coaxial cable – requires a double strip with correct lengths at each step
- High voltage power wire – usually requires 25-50 mm strips for lug or busbar connections
Strip Length Settings by Wire Size: A Quick Reference
| Wire Gauge (AWG) | Wire Diameter (mm) | Recommended Strip Length (mm) | Recommended Strip Length (inch) |
| 28 AWG | 0.32 mm | 2 – 5 mm | 0.08 – 0.20 inch |
| 22 AWG | 0.64 mm | 4 – 8 mm | 0.16 – 0.31 inch |
| 18 AWG | 1.02 mm | 6 – 12 mm | 0.24 – 0.47 inch |
| 14 AWG | 1.63 mm | 8 – 15 mm | 0.31 – 0.59 inch |
| 10 AWG | 2.59 mm | 12 – 20 mm | 0.47 – 0.79 inch |
| 6 AWG | 4.11 mm | 18 – 30 mm | 0.71 – 1.18 inch |
Key Tips for Getting the Strip Length Right
- Always try a sample wire first. Check before you run a whole batch.
- After the initial cut, measure the strip using a digital calliper.
- If you change wire gauge or insulation type, recheck the setting.
- Keep a note of the parameters for each task. This saves time on setup later.
- Check the stop pin on a compact wire stripping machine every time you adjust.
What Is the Full Strip Length Range of Industrial Cable Stripping Solutions?
The range of strips reflects the flexibility of a machine. Wider range means you can accomplish more tasks on one equipment. The range from 1 mm to 50 mm is covered by most industrial wire stripping machines. Some of the heavy-duty types go up to 60 mm.
For a small shop a compact wire stripping machine may have a range from 2 mm 30 mm. Always the larger range for large manufacturing floors. It reduces downtime, minimises costs and eliminates the need to swap between machines.
How Does Strip Length Range Compare Across Machine Types?
Manual Wire Stripper vs. Semi Auto vs. Fully Automatic
| Feature | Manual Stripper | Semi Auto Wire Stripping Machine | Fully Automatic Stripper |
| Strip Length Range | 1 – 20 mm (by hand) | 1 – 50 mm (adjustable) | 1 – 65 mm (programmable) |
| Adjustment Method | Manual eye + feel | Mechanical stop / digital dial | CNC / touchscreen program |
| Repeatability | Low (operator-dependent) | High (±0.2 mm) | Very High (±0.1 mm) |
| Speed | Slow | Medium-High | Very High |
| Best For | Repairs, small jobs | Mid-volume production | High-volume, multi-spec jobs |
Semi auto wire stripping machine offers the greatest combination of range, affordability and accuracy. It’s quicker than a manual. It is substantially cheaper than a fully automated variant. It is the greatest option for most small and mid-size factories.
Advantages of a Wide Strip Length Range
- Thin sensor wires and heavy power cables stripped on one machine
- Less setup time – one machine for all your tasks
- Improved batch uniformity for big volume runs
- Cheaper – not need to acquire additional machinery
- Meets More Customer Specs Without New Tooling
Disadvantages of a Narrow Strip Range
- You may need a second machine for thick cables or thin wires.
- Job changeover is slower and creates delays
- Operators could attempt to correct things manually, increasing error rates
- You don’t get jobs with variable strip length
What real-world industries rely on precise strip lengths from wire harness processing equipment?
Strip length is not a figure on a data sheet. If it is the incorrect length it might fail a quality check or prompt a product recall. Strip length restrictions in wire harness processing equipment industries are highly rigorous.
Each area has its standard. The semi auto wire stripping machine fits all these criteria. It allows operators to specify a parameter, check it quickly and repeat it accurately for each batch.
Industry Use Cases and Strip Length Requirements
| Industry | Typical Wire Type | Required Strip Length (mm) | Tolerance |
| Automotive Wiring | Multi-strand copper, 0.35–6 mm² | 8 – 15 mm | ±0.5 mm |
| Consumer Electronics | Micro coaxial, 28–32 AWG | 2 – 6 mm | ±0.2 mm |
| Industrial Control Panels | Single-core, 1.5–10 mm² | 10 – 20 mm | ±1 mm |
| Medical Devices | Shielded micro cable | 3 – 10 mm | ±0.2 mm |
| Aerospace & Defense | High-temp, PTFE insulation | 10 – 25 mm | ±0.3 mm |
| Solar & Energy Systems | PV cable, 4–6 mm² | 15 – 25 mm | ±1 mm |
Case Study: Automotive Harness Manufacturer
A wire harness manufacturing in Southeast Asia converted from manual wire stripping to a semi-automatic wire stripping equipment. They utilised 22 AWG wire with 10 mm strip length. Their rejection rate was 4.2%, before the change. After the change it was 0.6 per cent. Within a month they also raised the pace of manufacturing by 38%.
Case Study: Electronics Assembly Shop
A little business has a little wire stripping equipment to strip 28 AWG sensor cables to 4 mm. Hand-stripping produced nicked wires and short circuits. They did not have wire damage after utilising the equipment. They also got 3,000 pieces each day with complete batch uniformity.
Why Vimfun Is a Top Choice for Semi Auto Wire Stripping Machines
Reliable semi-auto wire stripping machine with broad strip range? Vimfun is a name that is trusted in the business. They provide automated wire stripping equipment, industrial cable stripping solutions and precise wire strippers for small businesses and big industries. Digital control optional.
Strip lengths from 1 mm to 50 mm. Vimfun machines are simple to use and made to last. Need a small wire stripping machine or whole wire harness processing equipment? Vimfun has it. Check their website for a quotation.
FAQs
What is the standard strip length range on a semi auto wire stripping machine?
Semi-auto wire stripping machines handle 1mm to 50mm. That is 0.04 in to 2.0 in. This includes most kinds of wire used in automotive, electrical and industrial activities. Some heavier variants are 60 mm and above.
- Always look at the spec sheet for the actual min and max length
- Digital models change in 0.1 mm increments
- The strip length range is a critical feature to evaluate when purchasing
Can I set the strip length in both mm and inches on these machines?
Yes. Most current precision wire strippers and semi-automatic wire-stripping machines allow you to choose between mm and inches on the display. This makes it easier to deal with both metric and imperial specifications.
- Check for dual unit display before purchase
- Some older models only display mm; you may need to convert manually
- Both devices are compatible with vimfun models
What happens if I set the strip length too short or too long?
Too short and the wire will not sit properly in the termination. Too long and the raw wire sticks out. That may create short circuits or fail a safety test . Both issues increase your scrap rate.
- Too short: weak crimp, poor electrical contact
- Too long: possibility of short circuit, poor safety inspection
- always check the terminal maker’s standard for length
How do I adjust the strip length on a semi auto wire stripping machine?
Turn the dial or enter a value on the keypad. A stop or servo motor tells the machine how far the wire goes before the blade cuts.
- Turn the knob clockwise to lengthen the strip
- Set goal value on panel in mm or inches
- Lock in the setting before you begin the batch
- Always verify the length first on one wire
Conclusion
The ideal tool to use for clean and precise wire stripping is a semi auto wire stripping machine. It covers 1 mm – 50 mm and operates on all wire kinds. It always produces the same outcome – no rejections, no re-stripping. Looking to enhance your automated wire stripper machine?
Now, check out Vimfun. They provide excellent pricing, and first class industrial cable stripping solutions and electrical wire processing machinery. Pick Vimfun for consistent results every time.
