How can an industrial cable stripping machine be configured to the correct strip length? This is one of the most often asked questions in the cable business. I have 6 years of experience in wire manufacturing and cable processing. I have worked in this sector with various types of industrial cable stripping machines.
In this article, I will explain strip length ranges in mm and inches. I will also tell you how to fix it. And I’ll tell you what machines are ideal for each task.

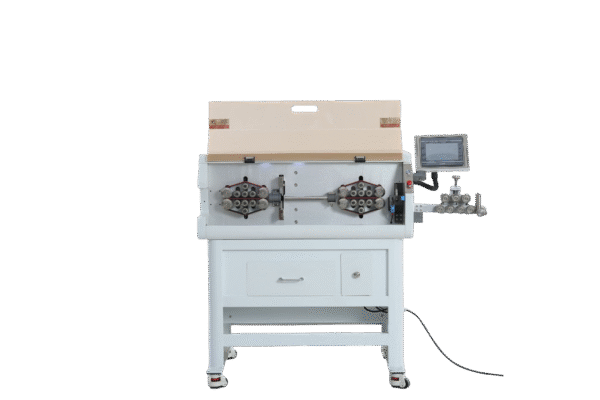

What Is an Industrial Cable Stripping Machine?
The outer insulation of wires and cables is removed using an industrial cable stripping machine. It is used in factories, recycling plants and wire processing units. The strip length is the amount of insulation that is stripped from the end of the cable.
Too brief and the link is broken. You squander copper for too long. On modern automated cable strippers this may be adjusted digitally. Insulation is cut cleanly and fast using rotary blades, servo motors or air systems.
Key Technical Specifications
| Feature | Details |
| Strip Length Range (mm) | 1 mm to 150 mm (standard); up to 9999 mm on advanced models |
| Strip Length Range (inch) | 0.04 inch to 5.9 inch (standard); up to 393 inch on heavy-duty models |
| Cable Size Range | 0.1 mm² to 240 mm² cross-section |
| Control Type | Digital touchscreen, PLC, or servo controller |
| Blade Type | Rotary, V-blade, or flat-blade |
| Processing Speed | 500 to 4000 cuts/hour depending on model |
| Machine Type | Benchtop, floor-standing, or fully automatic inline |
What Strip Length Range Can a Heavy Duty Cable Stripper Handle?
Strip length range is provided for the machine type and the cable size. Basic machines strip 1mm to 50mm. The maximum diameter of mid-range automatic industrial cable stripping machines is 150 mm.
Large cable processing machines, such as servo-driven cable strippers, have a maximum width of 9999 mm. That is 0.04 inch to more than 390 inches in inches. Every position has a distinct need. Pick the proper machine and you will always receive the right strip length.
Short Strip: 1 mm – 10 mm
For terminal crimping and PCB wiring, short strip lengths are employed. Accuracy is really crucial here. Even an inaccuracy of 0.5 mm might lead to a faulty crimp or a loose junction. This brief length is repeated by the automatic industrial cable stripping equipment thousands of times without mistake. Most machines employ encoder based feeding for extremely high precision.
- For Automotive Wiring Harness Lines
- Typical in electronics assembly
- Requires fine adjustment of blade depth.
- Standard tolerance: ±0.1 mm
Medium Strip Length Settings and Uses
| Strip Length | Inch Equal | Common Use | Machine Type | Accuracy |
| 5 mm | 0.20 inch | PCB terminal | Benchtop auto stripper | ±0.1 mm |
| 20 mm | 0.79 inch | Connector and splice | Mid-range servo stripper | ±0.2 mm |
| 50 mm | 1.97 inch | Panel and switchgear wiring | Industrial floor model | ±0.3 mm |
| 100 mm | 3.94 inch | Power cable end prep | Heavy duty cable stripper | ±0.5 mm |
Long Strip Uses on a Large Cable Processing Machine
- Cable prep for solar panels and wind turbines
- Laying of underground electricity cables
- Removal of busbar and traction cable
- Work on marine and offshore cables

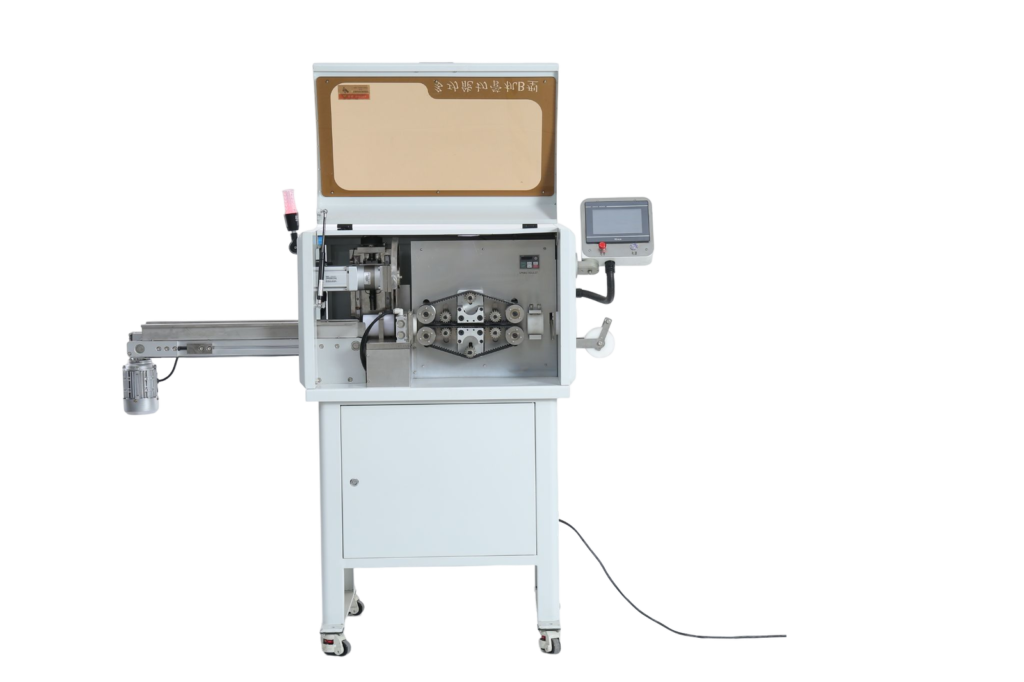

How Does a Rotary Cable Stripping Machine Compare for Accuracy?
Not all machines are able to attain the same level of strip length precision. Blades that spin are used by a rotary cable stripping machine. Fast and suitable for circular wires. A Servo Driven Cable Stripper employs motor feedback.
This has the best accuracy within ±0.1 mm. Pneumatic machines are faster but less accurate. Use servo systems for aeronautical or medical work. Rotary or pneumatic kinds are acceptable for high-volume, lower-precision jobs and are cheaper.
Machine Type Comparison for Strip Length Control
| Machine Type | Strip Length Range | Accuracy | Best Use | Cost |
| Rotary Cable Stripping Machine | 1–200 mm | ±0.3 mm | General industrial | Medium |
| Servo Driven Cable Stripper | 0.5–9999 mm | ±0.1 mm | Precision aerospace/auto | High |
| Pneumatic Stripper | 2–100 mm | ±0.5 mm | High-speed production | Medium |
| Manual Benchtop Stripper | 1–50 mm | ±1.0 mm | Small shop, low volume | Low |
Servo machines are the most precise. Rotary kinds are quickest for mid range cables. Pneumatic variants are used on high speed lines where precise tolerance is not a factor.
Rotary Cable Stripping Machine – Pros and Cons
- Fast blade movement, Easy to setup
- Works well on round and coax wires
- Less accurate on flat or uneven wires
- Blade wear may cause strip length to drift over time
Servo-Driven Cable Stripper – Pros and Cons
- Best strip length accuracy on the market
- Stores hundreds of strip length presets.
- Higher machine cost
- Requires a trained operator to program
Industries That Need Precise Strip Length
- Automotive Wiring Harness Factory
- Aerospace & Defence Cable Assembly
- Renewable Energy (Solar & Wind)
- Wiring for medical devices
- Heavy equipment and rail
How Do Top Industries Set Strip Length in Real Production?
Various strip length used in all industries. Automotive plants require crimp terminals from 6 mm to 12 mm. They are 10 mm to 20 mm in size. Solar installers utilise MC4 connections. Panel wiring is 15 mm to 50 mm for switchgear manufacturers.
Copper recycling plants will use a high speed cable stripper or large cable processing machine that will strip up to 9999 mm at a time. Each task requires the correct environment. Here are real-world examples from leading industries.
Strip Length Case Studies by Industry
| Industry | Cable Size | Strip Length | Machine Used | Output Rate |
| Automotive Harness | 0.5 – 6 mm² | 6 – 12 mm | Servo-Driven Cable Stripper | 3000 pcs/hr |
| Solar Energy | 4 – 16 mm² PV cable | 10 – 20 mm | Automatic Cable Stripping Machine | 1500 pcs/hr |
| Switchgear / Panel | 10 – 70 mm² cable | 15 – 50 mm | Heavy Duty Cable Stripper | 800 pcs/hr |
| Copper Recycling | 50 – 240 mm² cable | 200 – 9999 mm | Large Cable Processing Machine | Continuous |
How to Set Strip Length on a Cable Insulation Stripping Machine
- Step 1: Enter strip length in mm or inches on the digital controller
- Step 2. Set the blade depth to the thickness of the insulation.
- Step 3: Do a test run of a piece and measure the strip length
- Step 4: If the outcome is off, adjust the feed length.
- Step 5: Lock parameters and start production run
Check the first 5 parts at the end of setup. As the machine warms up the strip length will change slightly. This is automatically corrected using encoder feedback in a servo driven cable stripper.
Extra Tips to Keep Strip Length Accurate
- Digital calliper for strip length verification once setup is complete
- Clean blades regularly. Dirty blades cause uneven strips.
- Calibrate every 500,000 cycles of the machine.
- Ensure cable size matches feed rollers to avoid slippage
- Select the correct blade type for the insulating material
Which Features Help You Set Strip Length Faster and Easier?
Modern industrial cable stripping machines are equipped with smart features for fast and easy setup. A touchscreen allows you input the precise mm or inch value quickly. Saved work programs allow you to remember settings in seconds for repeat tasks.
Auto blade depth guessing removed. Thousands of cycles of servo feed systems maintain strip length consistency. These features save time and decrease shop floor mistakes.
Top Features to Look for in Strip Length Control
- Digital Touchscreen – Enter strip length in MM or Inches, No Dial Needed
- Job memory – save up to 500 scripts with complete strip length settings
- Automatic blade depth – the machine determines the depth according to the cable size entered
- Servo closed loop feed – maintains strip length on lengthy runs
- Error alarm system – machine stops if strip length is out of range
- Barcode scanning – scan job card, all parameters loaded in 1 second
FAQs
What is the usual strip length range on an industrial cable stripping machine?
Most industrial cable stripping machines can stripe cables from 1mm to 150mm in width. That’s from .04 inch to 5.9 inches. Advanced servo or CNC variants are available up to 9999 mm (393 inches). Your Range depends on your cable type & job.
- Entry Models: 1- 50 mm
- Middle-class models: 1 – 150 mm
- Heavy-duty versions: up to 9999 mm
What affects strip length accuracy on a heavy duty cable stripper?
Blade sharpness, feed roller grip, amount of cable, and calibration of the machine all affect accuracy. Unequal strip lengths are caused by a dull blade or loose roller. These concerns are minimised using servo driven cable strippers with motor feedback control.
- The main factor is the condition of the blade
- Feed roller pressure should match cable size
- Regular calibration maintains results in spec
- Servo systems themselves fix slight feed faults
How do I change the strip length on a rotary cable stripping machine?
Most rotary cable stripping machines include a digital control panel. Enter mm value, press OK and create test piece. Older versions could have a dial or a stop. Always verify the real strip on a test piece before commencing production.
- Type the value in the digital panel
- First run 3-5 test pieces
- Take a calliper measurement
- Increment in stages of 0.1 mm until correct
What strip length is used for solar cable on a large cable processing machine?
MC4 connections often have solar cables trimmed to 10-20mm. For wiring in junction boxes, you may require up to 30mm. This is easy with a large cable processing machine, or cable insulation stripping machine. Just save the job setting and the machine takes care of the rest each time.
- MC4 connectors: 10-15 mm
- Junction box: 15-30 mm
- Busbar panel 20 – 50 mm
- Always check the connector supplier spec
Conclusion
It is not difficult to choose the best industrial cable stripping machine. Just know your cable size, how many cables you process, and how perfect the strip has to be. There is a machine for any work from 1mm to 9999mm.
Vimfun is a good place to start. They provide high-quality industrial cable stripping machines at affordable pricing, with complete support. Come to Vimfun and choose the best computer for your task.
