Why do so many manufacturers spend hours of labor on cutting tubes by hand and receive unsatisfactory results? I’ve been in the industrial tube cutting industry for over 12 years and I have seen this issue impact a lot of manufacturing lines.
In this article, I will tell you what is a digital tube cutter. I’ll show you what it can cut tubes. I will also discuss how it works, why it saves money, and what to look for before you purchase.

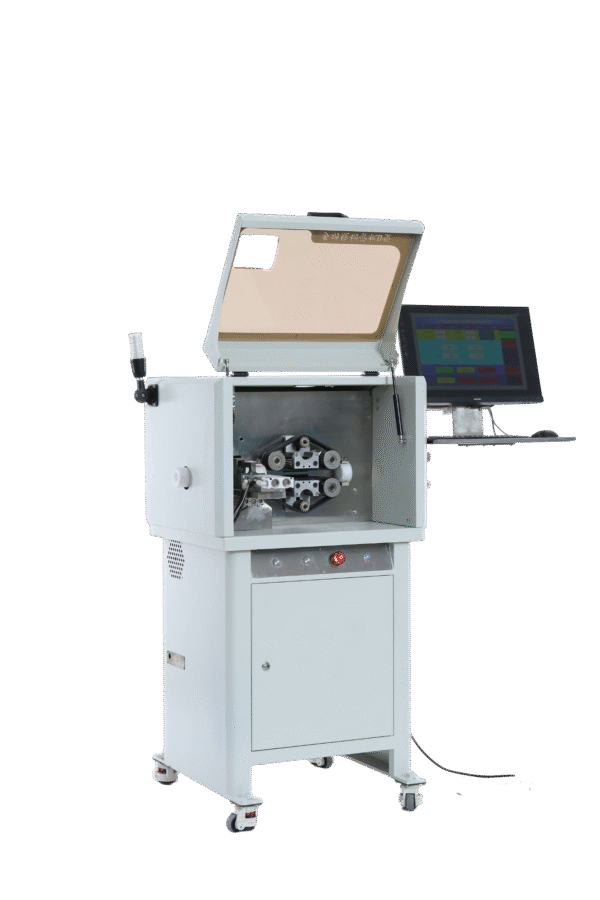

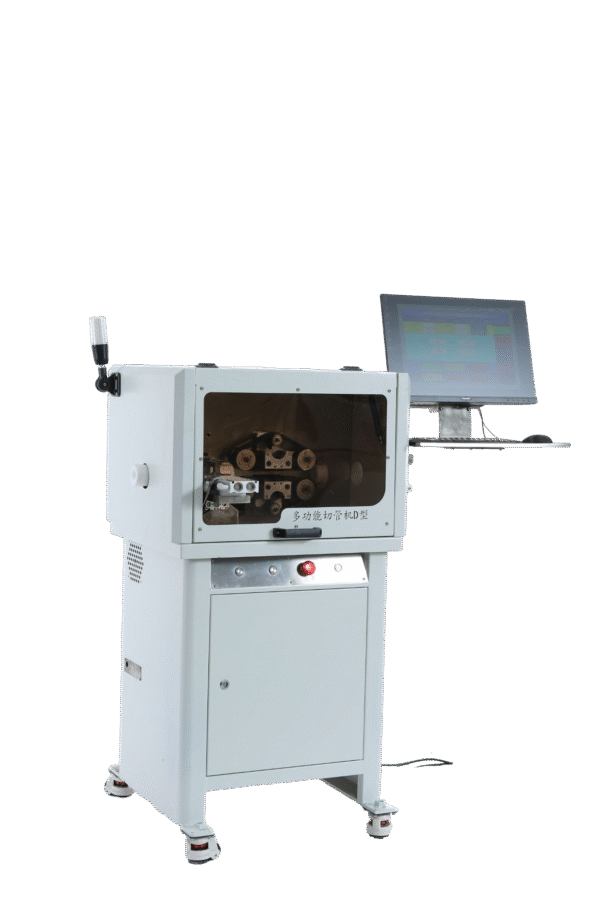

What Is a Digital Tube Cutter and Why Does It Matter?
A digital tube cutter cuts tubes rapidly and cleanly. Every cut is computer-controlled. Works on several sorts of tubes – soft or rigid. Cuts are all the same size. No mistakes by a human. These devices are utilized in automotive, HVAC and cable operations.
The automated tube cutting equipment feeds the tube, measures the tube and cuts the tube. It saves time and reduces waste. Many programs are stored in a CNC tube cutting machine. It changes swiftly. Built for the factory that needs speed.
Key Technical Features of a Digital Tube Cutter
| Feature | Details |
| Cut Accuracy | ±0.1 mm or better |
| Tube Diameter Range | 1 mm – 60 mm |
| Cutting Speed | Up to 2,000 cuts/hour |
| Control System | Digital touchscreen + PLC |
| Compatible Materials | PVC, copper, rubber, heat shrink, conduit |
| Power Supply | 110V / 220V AC |
| Blade Type | Rotary blade or pneumatic cutter |
What Tube Types Can a High Precision Tube Cutting Machine Process?
One machine can cut all your tubing? Mostly. Yep. The high precision tube cutting machine is considered to have little flexibility. The wire harness tube cutter cuts soft materials like heat shrink and PVC. It will also work on tougher materials, such copper tubing and conduit.
All you need is the appropriate blade and speed. Most digital tube cutters can cut 5 to 8 tube types currently. You don’t have to replace the full computer configuration. This is perfect for firms that utilize a lot of different materials.
PVC Tube Cutting – Is It Clean and Burr-Free?
Digital cutters are quite popular for cutting PVC tubing. The PVC is malleable. however if the blade is dull or the speed is incorrect, it might distort.
- Sharp rotary blade for crisp cut edges
- Keep the feed speed at a safe level to prevent melting
- Dont clamp too tight – will smash tubing.
- Always set precise PVC tube cutter for thin-wall PVC
| PVC Tube Type | Wall Thickness | Recommended Speed | Blade Type |
| Soft PVC sleeve | 0.5–1.5 mm | Medium | Rotary |
| Hard PVC conduit | 1.5–3 mm | Low | Pneumatic |
| PVC heat shrink | 0.3–1.0 mm | High | Rotary |
| PVC corrugated | 2–4 mm | Low | Stepped blade |
Which Heat Shrink Tube Processing Settings Are Optimal?
Processing of heat shrink tube demands caution. These tubes are thin and stretchy. A incorrect setting may rip or de-form them.
- Before the initial cut, feed the tube gently
- Apply a modest clamp force to maintain the tube round.
- A heat shrink sleeve cutter restricting blade contact time
- Check that the cut ends are level and neat and not frayed
Can the Machine Cut Tough Materials with Copper Pipe and Hydraulic Hose?
Yes. But you need to have the correct machine grade. The blade is different from the PVC cutter A metal cable sleeve cutting machine
- Copper pipe: Use a V-blade or disc cutter, at low speed
- Hydraulic hose: Use a strong clamp guillotine blade
- Deburring copper cutting to eliminate sharp edges always
- Auto-Deburr Tool Tube cutting automation for hoses generally involves a
How Is Digital Cutting Superior to Manual Cutting?
Is manual cutting really that bad? Yes, for most factories, it is. Manual labor is slow, exhausting and irregular. One fatigued worker may wreck a lot of parts in one shift. The computerized cutting machine is running the same program all day.
Quality is never compromised. No experienced hand-cutting is required, since the CNC tube cutting machine does it all. The ROI is quick – frequently within 6 to 12 months for mid-size manufacturers.
Manual vs. Digital Tube Cutting – Which One Wins?
| Factor | Manual Cutting | Digital Tube Cutter |
| Cut Accuracy | ±2–5 mm | ±0.1 mm |
| Speed | 100–200 cuts/hour | Up to 2,000 cuts/hour |
| Skill Needed | High | Low |
| Waste Rate | 5–15% | Less than 1% |
Manual cutting is ideal for tiny one time operations. But for big volume work, a digital tube cutter pays off quickly and produces far superior results.
Advantages of Tube Cutting Automation
- Every cut is the same length – no mistakes
- Tube sizes changed in seconds
- Lower labor cost per piece
- Safety guards limit the chance of harm.
- Data logs assist with quality checks
Disadvantages to Consider
- The initial cost is greater than manual tools
- An operator requires basic setup instruction
- Not worth it for extremely tiny or one time work.
Where Is an Industrial Tube Cutting Machine Used the Most?
These are machines used daily in several sectors. It’s a lengthy list. The industrial tube cutting machine is utilized in automobiles, buildings, ships and power plants. Large manufacturing lines globally have tube cutting options.
Automatic sleeve cutters are processing thousands of heat shrink tubes each day in wire shops. In construction, conduit cutters cut pipe lines with no scrap.
Real-World Case Studies – Which Industries Use These Machines?
| Industry | Tube Type Used | Machine Type | Result |
| Automotive | PVC sleeve, heat shrink | Wire harness tube cutter | 60% faster harness build |
| HVAC | Copper pipe, aluminum | CNC tube cutting machine | Zero-defect pipe runs |
| Construction | PVC conduit, EMT | PVC tube cutting equipment | 40% less material waste |
| Marine/Oil & Gas | Hydraulic hose, rubber | Industrial tube cutting machine | Safe, deburr-ready cuts |
Vision Positioning – The Smart Upgrade
A vision positioning cutter employs a camera to locate the tube edge. It lines the cut without any human intervention. This is useful for:
- Indicate tubes where cut-spot is important
- Tubes with previously connected connections
- Fast lines when manual alignment is too sluggish
What Should You Check Before Buying a Tube Cutting Solution?
How to choose the correct machine? Begin with the basics. List all the sorts of tubes you cut. Let’s see whether the machine can take them all. Look for a clear digital display and quick program set-up.
A decent automatic tube cutting machine must feature safety covers and emergency stop. Always get a sample cut before purchasing.
Quick Checklist Before You Buy:
- Will it cut PVC, heatshrink, copper and hose?
- Cut accuracy is ±0.1 mm or greater ?
- How many cuts does it do each hour?
- Programming a PC or a touch screen is not hard.
- How much are they and how long do the blades last?
- Does the merchant provide local assistance and replacement parts?
FAQs About Digital Tube Cutters
What is a digital tube cutter used for?
A digital tube cutter cuts tubes and sleeves to the required length. It is utilized in manufacturing lines and manufacturers. It swaps sluggish hand-cutting for quick computer-driven accuracy.
- Cuts PVC, Heat Shrink, Copper, Rubber & Conduit
- Stores plenty of snip programs for easy usage
- Reduces waste and increases speed of output
Can a digital tube cutter handle heat shrink tubing?
Yes. It is one of its main applications to process heat shrink tube. The machine has a soft-touch blade and minimal clamp force. It cuts cleanly without harming the tube.
- Suitable for all standard heat shrink sizes
- Cuts cleanly and evenly without fraying
- High speed mode available for large quantities
Is a CNC tube cutting machine hard to use?
No. Touch screen controllers are common on modern CNC tube cutting machines. Most workers can get the fundamentals down in one day.
- Programs load and save in seconds.
- Auto-feed reduces handwork
- On-screen hints aid with setup and blade changes
What makes a precision PVC tube cutter better than a standard one?
A precision PVC tube cutter has a sharper blade and more control. The ends are generally uneven or rough using standard cutters.
- ±2–5 mm precision against ±0.1 mm standard cuts
- Best for thin PVC that bends/distorts
- Needed for medical, auto & aerospace jobs
Can one machine cut both copper pipe and heat shrink sleeves?
Some industrial tube cutting equipment on the top end can accomplish both. You merely change the blade. But most firms have separate machinery for metal and soft tubing.
- Always check material list before purchase.
- Blade changes take 5 to 10 minutes
- Dual use devices more costly but save space
How does vision positioning improve tube cutting automation?
A vision positioning cutter use a camera to determine the precise cutting spot. This is important for tubes with print markings or fitted pieces.
- Prevents tube drift mis-cuts
- Fast running, line won’t stop
- Best for complicated wire harness tube cutting operations
Conclusion
Stop wasting time and money handcutting. A digital tube cutter provides quick, clean, and consistent cuts – every time. Works on PVC, heat shrink, copper pipe, hydraulic hose and conduit. The findings are confirmed in several businesses.
Vimfun is your source of top automated tube cutting machines and tube cutting solutions. Vimfun provides the correct machine for your requirements, with exceptional service and parts ready to delivery. If you want top high precision tube cutting results, Vimfun is the smart choice.
