WM-R02 Wire Stripping and Ring Terminal Crimping Machine
📌 Multi-function design: Supports wire stripping, twisting, and ring terminal crimping in one machine
📌 Wide compatibility: Handles BVR wires from 0.5–4.0 mm²
📌 Precision terminal support: Works with insulator length ≤7.5mm and conductor length ≤10mm
📌 Efficient operation: Max. stripping length 12mm, production rate 2.5s per wire
📌 Stable performance: Powered by AC220V/110V with 0.6–0.8Mpa air supply
📌 Compact & durable: 50kg machine with 39×42×50cm footprint, ideal for workshop use
Why Choose VIMFUN Equipment
Advanced automation solutions trusted worldwide for precision, efficiency, and reliability.
Delivering precision-engineered equipment across automotive, electronics, new energy, and medical industries.
-
15+ Years Experience
Proven expertise and professional solutions in wire processing automation.
-
High Precision & Reliability
Cutting accuracy up to ±0.20 mm for stable long-term performance.
-
Global Service
Trusted by customers in 30+ countries with responsive technical support.
-
OEM/ODM Customization
Tailored equipment solutions designed to match your unique production needs.
Trusted by 200+ customers worldwide
VIMFUN TS-R02 Automatic Bootlace Crimper
The VIMFUN TS-R02 is an automatic wire stripping, twisting, and ferrule crimping machine, designed for efficient processing of a wide range of loose tubular terminals. It supports terminal sizes from 0.3mm² to 4mm² without the need to change crimping dies, ensuring maximum flexibility in cable assembly. The integrated twisting function prevents loose conductors during crimping, providing secure and reliable connections.
With its optimized design, the TS-R02 completes stripping, terminal positioning, and crimping in just 2.5 seconds, significantly improving productivity for both small workshops and large-scale manufacturing environments.
Key Features
📌 One machine for multiple terminal sizes — no die changes required
📌 Stripping, twisting, and crimping completed in one operation
📌 Ideal for stranded and fine wires, preventing conductor misalignment
📌 LCD control with automatic adjustment of stripping depth and length
📌 Quiet motor feeding with automatic terminal supply and four-side crimping
📌 Easy reclaimer replacement — simple screw release mechanism
📌 Adjustable ferrule feeder vibration for precise handling of different terminal sizes

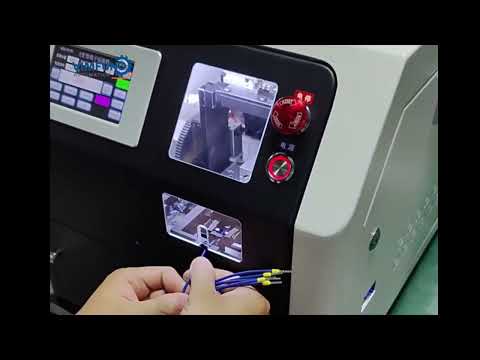

Wire stripping machine and ring terminal crimping machine video:
Model | TS-R02 |
|---|---|
Function | Wire stripping twisting and ring terminal crimping |
Available Wire | BVR wire 0.5, 0.75, 1.0, 1.5, 2.5, 4.0mm² |
Available Terminal | Insulator length ≤7.5mm, conductor length ≤10mm |
Stripping Length | Max. 12mm (the wire needs more than 35mm into the machine) |
Production Rate | 2.5s / wire |
Air Supply | 0.6–0.8Mpa |
Power | AC220V / 110V |
Dimensions | 39 × 42 × 50 cm |
Weight | 50KG |
Application
Wire stripping and ring terminal crimping
