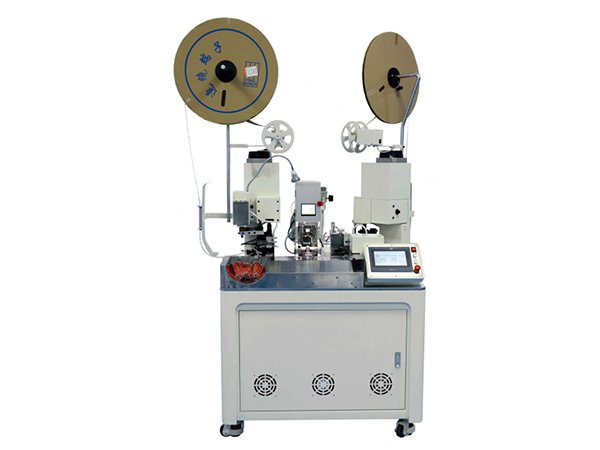

HW-FSD Double-End Crimping & Waterproof Plug Insertion Machine
Model: HW-FSD
Functions: Wire cutting, single-end stripping, dual-end stripping, dual-end terminal crimping, dual-end waterproof plug insertion
Applicable Wire Range: AWG#28 – AWG#16
Why Choose VIMFUN Equipment
Advanced automation solutions trusted worldwide for precision, efficiency, and reliability.
Delivering precision-engineered equipment across automotive, electronics, new energy, and medical industries.
-
15+ Years Experience
Proven expertise and professional solutions in wire processing automation.
-
High Precision & Reliability
Cutting accuracy up to ±0.20 mm for stable long-term performance.
-
Global Service
Trusted by customers in 30+ countries with responsive technical support.
-
OEM/ODM Customization
Tailored equipment solutions designed to match your unique production needs.
Trusted by 200+ customers worldwide
Key Features
-
Multi-Function Automation
Performs wire cutting, single/double-end stripping, dual-end terminal crimping, and dual-end waterproof plug insertion in one cycle.
-
Compact & Efficient Design
Occupies minimal floor space with an integrated layout—ideal for factories with limited space.
-
User-Friendly Interface
Equipped with a KINCO color touchscreen for intuitive settings adjustment and real-time monitoring.
-
High-Precision Motion System
Stepper-driven system ensures fast and accurate wire handling. Digitally controlled stripping length and positioning.
-
Rapid Changeover
Quick replacement of tooling and wire types enables flexible batch switching.
-
Stable & High Output
Processes up to 1200 wires/hour (length ≤ 100 mm) with consistent crimp quality.
-
Quality Components
Built using high-end imported core components to ensure durability and cost-efficiency.
-
Advanced Detection Functions
Includes wire feeding, terminal presence, plug-in verification, and low-air-pressure alarms for safe and accurate operation.
Applications
The HW-FSD is widely used in:
-
Automotive harness production
-
Waterproof wire assemblies
-
Electrical appliance wiring
-
3C electronics and industrial control systems
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model |
HW-FSD |
|
Power Supply |
AC220V / 50/60Hz (single-phase) |
|
Functions |
Cutting, single/double-end stripping, dual crimping, waterproof plug insertion |
|
Output Capacity |
Up to 1200 pcs/hour (for ≤100mm length wires) |
|
Wire Range |
AWG #28 – AWG #16 |
|
Cutting Length |
50 mm – 999 mm (custom lengths available) |
|
Cutting Precision |
±1 mm or ≤ 0.2% of cutting length |
|
Stripping Length |
1.5 mm – 10 mm |
|
Crimping Force |
2.0 T / 3.0 T (optional) |
|
Air Pressure Requirement |
4 – 6 kg/cm² |
|
Detection Functions |
Wire feeding, terminal detection, waterproof plug detection, air pressure alarm |
|
Machine Dimensions |
900 mm × 1200 mm × 1500 mm |
|
Machine Weight |
Approx. 500 kg |
The HW-FSD is a fully automated wire harness processing solution designed for high-precision, double-end terminal crimping and waterproof plug insertion. Engineered for efficiency and reliability, this machine is ideal for medium to high-volume wire assembly lines in automotive, appliances, and electronic industries.
