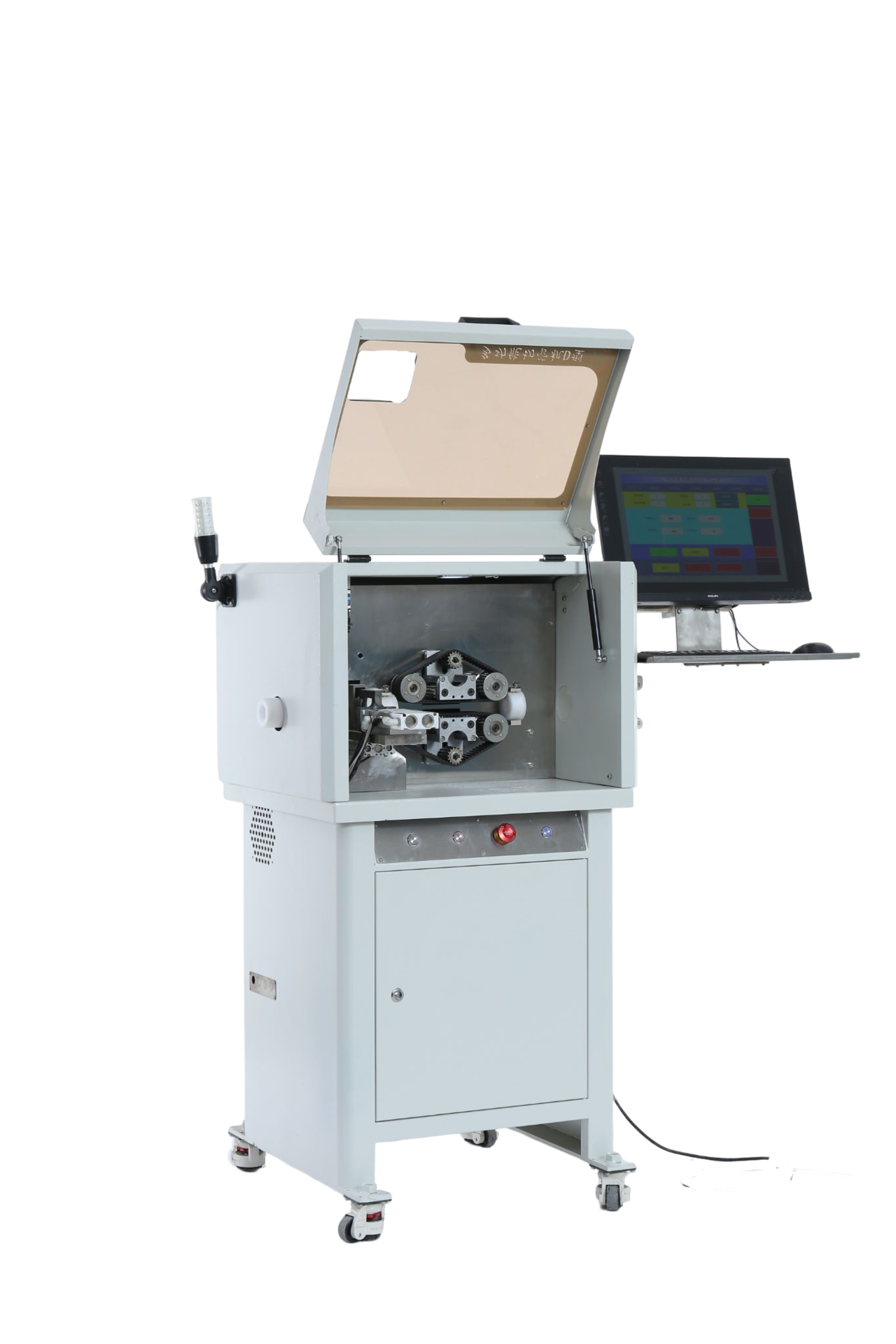

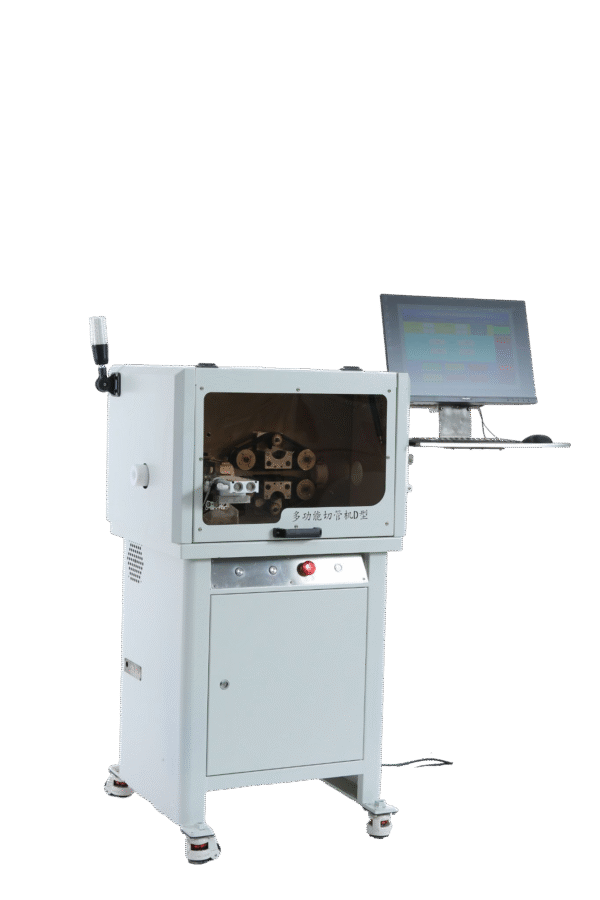

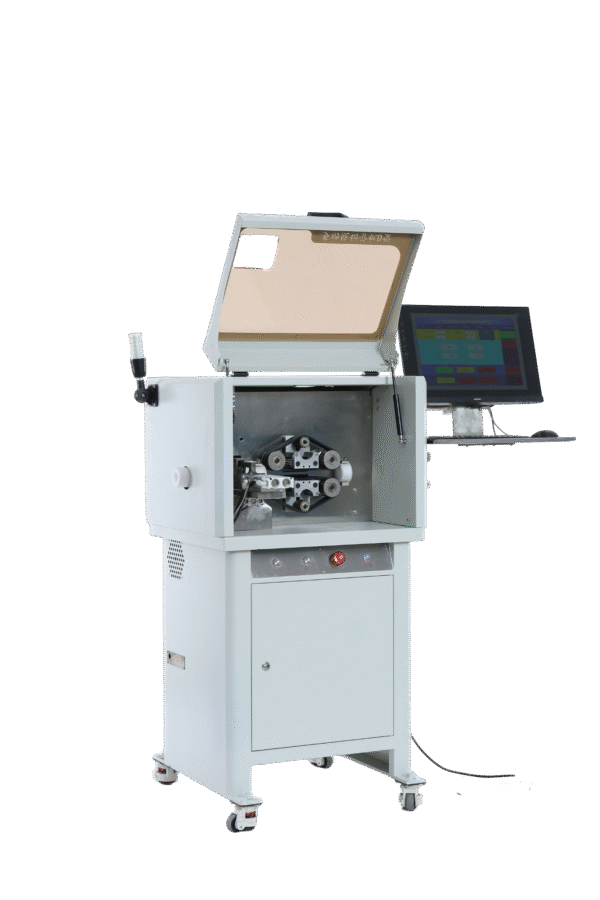

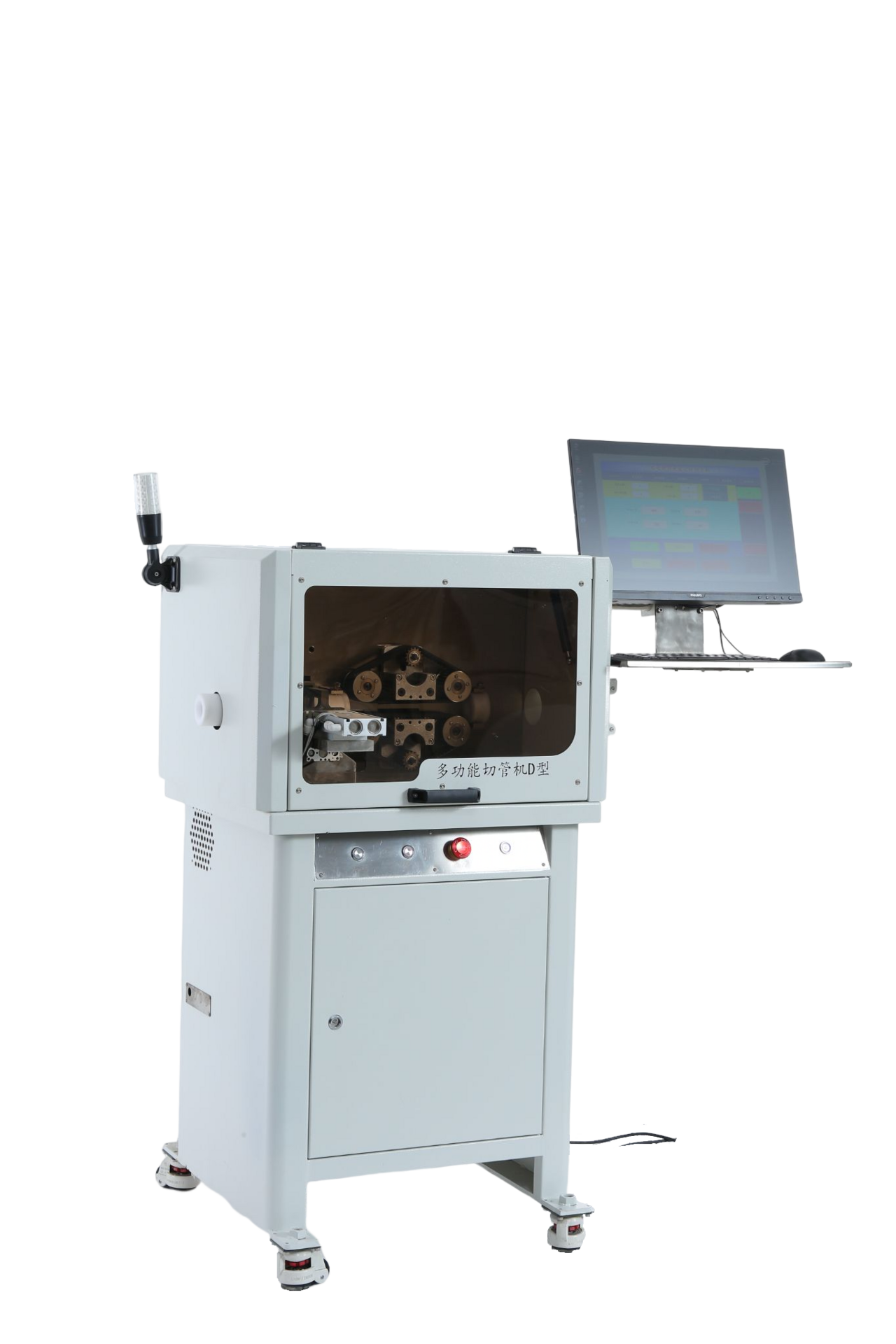

HW-D Digital Tube Cutter for Heat Shrink and PVC Tubes
Key Highlights
HW-D Efficient Digital Tube Cutting
📌 Cutting range: 4–45mm
📌 Accuracy: ±0.2mm (material-dependent)
📌 Speed: 10–60 pieces/min
📌 Vision positioning technology
📌 Energy-efficient 300W operation
Why Choose VIMFUN Equipment
Advanced automation solutions trusted worldwide for precision, efficiency, and reliability.
Delivering precision-engineered equipment across automotive, electronics, new energy, and medical industries.
-
15+ Years Experience
Proven expertise and professional solutions in wire processing automation.
-
High Precision & Reliability
Cutting accuracy up to ±0.20 mm for stable long-term performance.
-
Global Service
Trusted by customers in 30+ countries with responsive technical support.
-
OEM/ODM Customization
Tailored equipment solutions designed to match your unique production needs.
Trusted by 200+ customers worldwide
Overview
The HW-D Digital Tube Cutter is engineered for precise cutting of 4–45mm heat shrink and PVC tubes using advanced vision positioning technology. Controlled by a custom PLC and human-machine interface, it delivers a cutting accuracy of ±0.2mm (material-dependent) with speeds of 10–60 cuts per minute. Featuring a 30mm stroke and cylinder clamping mechanism, this machine is ideal for industries requiring high-precision tube processing, such as electronics insulation and automotive wiring.
Key Features
Vision Positioning: Advanced imaging for accurate tube alignment.
High Precision: Cutting accuracy of ±0.2mm (material-dependent).
Cylinder Clamping: Ensures secure and stable cutting.
PLC Control: Custom five-axis PLC for reliable operation.
Wide Cutting Range: Handles 4–45mm heat shrink and PVC tubes.
Efficient Speed: Processes 10–60 pieces/min (length-dependent).
Compact Design: Measures 160×135×75cm, fits various workspaces.
Premium Components: Includes Hikvision camera and Hiwin guide rails.
Custom HMI: Dedicated industrial PC for intuitive control.
Low Power: Operates at 300W for energy efficiency.
Technical Specifications
Parameter | Specification |
|---|---|
Model | HW-D |
Cutting Range | 4–45mm (sample-dependent) |
Cutting Method | Cylinder Clamping |
Stroke | 30mm |
Accuracy | ±0.2mm (material-dependent) |
Speed | 10–60 pieces/min (length-dependent) |
Power Supply | 220V, 50–60Hz |
Total Power | 300W |
Control System | PLC with HMI |
Positioning Method | Vision Imaging |
Dimensions | 160×135×75cm |
Weight | 155kg |
Compatible Materials | Heat shrink, PVC tubes |
Applications
Electronics Insulation: Precise cutting for heat shrink tubing in electronics.
Automotive Wiring: Ideal for PVC tube processing in wiring harnesses.
Industrial Tubing: Supports various industrial tube cutting needs.
Cable Protection: Ensures accurate cuts for protective sleeving.
